Key Features & Benefits
Custom Sector Angle: Designed for limited-angle rotation and precise mechanical positioning.
Precision Gear Teeth: Straight-tooth geometry for smooth engagement with mating gears.
Material Options: Available in steel, stainless steel, and engineering plastics based on application requirements.
Flexible Mounting Design: Custom bores, keyways, mounting holes, and gear thickness.
OEM Manufacturing: Customized gear modules, tooth counts, and dimensions according to drawings.
Customization: Drawing-Based OEM / ODM
| Availability: | |
|---|---|
| Quantity: | |

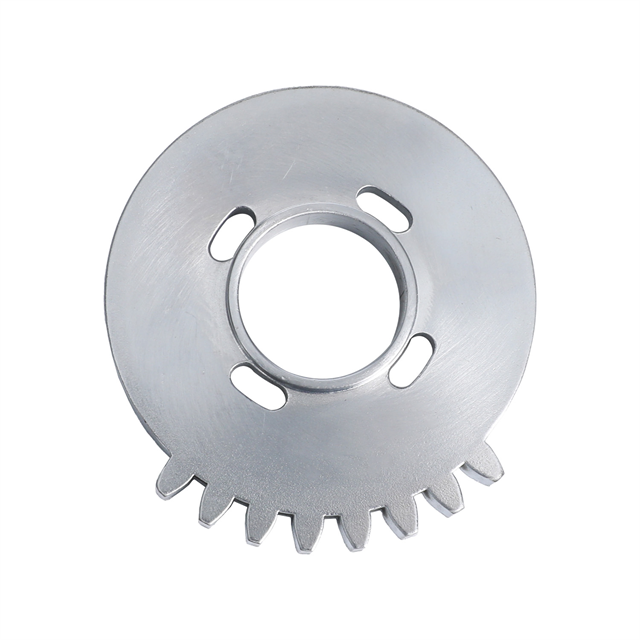

Custom Sector Spur Gears for Precision Angular Motion and Mechanical Positioning
YF Gear provides custom sector spur gears for equipment requiring limited-angle rotation, controlled positioning, and reliable mechanical engagement. Unlike full-circle spur gears, sector gears feature teeth along only part of the circumference, making them suitable for mechanisms that operate within a defined angular range.
We manufacture sector gear components according to customer drawings, with material selection, tooth geometry, mounting features, and dimensional requirements tailored to different mechanical assemblies.
Key Features
Partial-Circumference Teeth: Designed for limited-angle rotary movement.
Custom Gear Geometry: Tooth count, module, sector angle, and mounting dimensions based on design requirements.
Material Options: Steel, stainless steel, and suitable engineering plastics, subject to design requirements.
Precision Machining: Tooth profiles and mounting features manufactured according to approved technical drawings.
OEM Manufacturing: Customized production for equipment manufacturers and mechanical assembly suppliers.
CTA: Request a Custom Sector Gear Quote
Our sector spur gears can be customized to match the geometry, operating conditions, and installation requirements of the intended mechanism.
Parameter | Specification / Customization |
|---|---|
Product Name | Sector Spur Gear |
Gear Type | Partial-Circumference Spur Gear |
Tooth Profile | Straight Teeth / Involute Profile |
Material | Carbon Steel, Alloy Steel, Stainless Steel, Engineering Plastics (subject to confirmation) |
Module | Customized According to Drawings |
Number of Teeth | Based on Required Sector Angle and Gear Geometry |
Sector Angle | Customized |
Pressure Angle | According to Design Requirements |
Gear Thickness | Customized |
Bore / Mounting Design | Round Bore, Keyway, Mounting Holes or Custom Features |
Surface Treatment | Depending on Material and Application |
Accuracy Requirements | According to Approved Technical Drawings |
Manufacturing Service | OEM / Custom Manufacturing |
Drawing Format | 2D / 3D Engineering Drawings |
Final specifications are determined by the approved design, material selection, manufacturing feasibility, and operating requirements.
A sector spur gear is a mechanical gear component with teeth distributed along a portion of a circular circumference rather than around a complete gear wheel.
It normally meshes with a mating pinion or gear to transmit rotary motion through a defined angular range.
While a conventional spur gear supports continuous rotation, a sector gear is commonly used where only partial rotation is required.
This configuration can be useful in mechanical positioning systems, control mechanisms, and equipment where full-circle gearing is unnecessary.
A sector gear operates by engaging its teeth with a mating gear or pinion. As the driving component rotates, the meshing teeth transfer motion and torque through the available toothed arc.
The maximum operating range depends on the sector angle, tooth arrangement, mating gear geometry, and mechanical stops within the assembly.
For reliable operation, the sector gear must be designed with suitable tooth geometry, center distance, backlash, and support conditions.
Different equipment assemblies require different sector gear configurations. We support drawing-based customization to match specific mechanical and installation requirements.
The toothed arc can be designed for the angular travel required by the mechanism.
Key design considerations include:
Required angular travel
Number of teeth
Gear module
Pressure angle
Pitch radius
Mating pinion dimensions
Allowable backlash
The selected gear geometry must maintain proper engagement throughout the intended operating range.
Material selection affects load capacity, wear resistance, weight, corrosion resistance, and service conditions.
Material | Characteristics | Typical Applications |
|---|---|---|
Carbon Steel | Strength and machinability | General industrial mechanisms |
Alloy Steel | Potential for increased strength and wear resistance with suitable treatment | Higher-load mechanical assemblies |
Stainless Steel | Corrosion resistance | Equipment exposed to moisture or corrosive conditions |
Engineering Plastics | Lightweight construction and potentially reduced noise | Light-duty positioning mechanisms |
Material availability and grade selection should be confirmed before production.
Sector spur gears may require mounting features that differ from conventional complete gears.
Depending on the design, these can include:
Central mounting bores
Keyways
Bolt holes
Integrated hubs
Custom mounting profiles
Special shaft connections
These features help integrate the sector gear into the existing mechanical assembly.
Sector spur gears are commonly used in mechanisms that require controlled angular movement instead of continuous rotation.
Application | Function of Sector Gear |
|---|---|
Industrial Automation | Transfers limited-angle rotary motion in positioning mechanisms |
Mechanical Actuators | Converts input motion into controlled angular displacement |
Robotics and Mechanical Linkages | Supports defined movement ranges in suitable joints or linkages |
Equipment Adjustment Mechanisms | Provides repeatable angular adjustment |
Specialized Machinery | Enables partial-rotation transmission within a compact assembly |
The final gear design should be selected according to the equipment's operating load, speed, travel range, and installation conditions.
Although both gear types can use conventional straight involute teeth, their structures and operating purposes differ.
Feature | Sector Spur Gear | Standard Spur Gear |
|---|---|---|
Gear Structure | Partial circular toothed section | Full circular gear |
Tooth Distribution | Limited portion of circumference | Complete circumference |
Motion Range | Designed for limited angular travel | Can support continuous rotation |
Common Function | Angular positioning and partial-rotation motion | Continuous power transmission |
Design Considerations | Sector angle, travel limits, tooth engagement | Gear ratio, speed, torque, continuous meshing |
Sector spur gears are suitable when a mechanism requires controlled movement across a limited angle, while standard spur gears are generally preferred for continuous rotation.
At YF Gear, sector gear manufacturing begins with the evaluation of customer drawings and application requirements.
Our manufacturing approach focuses on obtaining the required tooth geometry, dimensional consistency, and mounting compatibility.
We review the supplied specifications, including module, tooth count, sector angle, material, mounting structure, and mating gear requirements.
The gear blank is prepared according to the selected material and component geometry. Machining processes are selected based on tooth configuration, tolerances, and production requirements.
Gear teeth are manufactured to the defined profile and dimensions, with attention to tooth spacing, meshing compatibility, and required accuracy.
Depending on the specification, finishing and inspection focus on critical dimensions, tooth geometry, mounting features, and other drawing-defined characteristics.
As a manufacturer of custom transmission components, YF Gear works with equipment manufacturers and industrial buyers requiring specialized gear geometries.
Drawing-Based Customization
Sector angle, tooth geometry, mounting dimensions, and material can be specified according to the requirements of the mechanical assembly.
Manufacturing Support
We review drawings and technical specifications to determine suitable machining processes and production requirements.
Mechanical Assembly Compatibility
Custom mounting features and mating gear requirements can be considered during the manufacturing review.
OEM Gear Manufacturing
We support customer-designed gear components intended for incorporation into industrial machinery and mechanical systems.
A standard spur gear has teeth around its complete circumference, while a sector spur gear has teeth on only part of a circular arc. Sector gears are typically used for limited-angle motion.
Yes. Sector gears can be manufactured according to customer drawings, including custom tooth counts, sector angles, gear modules, materials, and mounting configurations.
Common choices include carbon steel, alloy steel, stainless steel, and engineering plastics. The appropriate material depends on load, operating conditions, wear requirements, and corrosion exposure.
A conventional sector gear is generally not suitable for continuous meshing through a full revolution because teeth are present along only part of its circumference. It is designed for mechanisms with limited angular movement.
Please provide the gear drawing or 3D model, module, tooth count, sector angle, material, required quantity, tolerance requirements, and relevant application details. Information about the mating gear is also helpful.
Looking for a sector gear manufacturer for your equipment or mechanical assembly?
Send YF Gear your technical drawings and application requirements. Our team can review the specifications and discuss suitable manufacturing options for your custom sector spur gear project.
CTA: Send Your Drawing for a Quote
