Selecting the right gear goes beyond basic power transmission. An incorrect choice directly impacts system efficiency, thermal management, and long-term maintenance costs. Engineers and procurement teams must balance load requirements, spatial constraints, and budget realities. You face intense pressure to optimize mechanical systems without overspending. Poor design decisions often lead to premature component failure. We understand these engineering challenges intimately. This guide breaks down the precise engineering trade-offs and operational realities of the four most common industrial gears. We want to help you finalize your powertrain specifications accurately. You will learn how to match specific gear geometries to your distinct operational demands. By the end of this guide, you will have a clear roadmap for your next design cycle.
Spur gears offer the highest cost-efficiency and power transmission efficiency for low-speed parallel shafts but suffer from high noise levels.
Helical gears provide smooth, high-speed operation but introduce axial thrust that requires specialized bearings.
Bevel gears are optimal for high-efficiency 90-degree directional changes but demand rigid mounting to maintain strict backlash tolerances.
Worm gears deliver massive reduction ratios and self-locking capabilities in compact spaces, though at a significant cost to energy efficiency.
Table of Contents
You cannot select a gear profile based on component cost alone. Mechanical systems require a holistic evaluation of physical and operational constraints. We recommend assessing four critical engineering criteria before locking in your design.
Shaft Orientation Mapping: You must define your spatial constraints early. Systems generally utilize parallel shafts, intersecting perpendicular shafts, or non-intersecting perpendicular shafts. The spatial layout immediately dictates which gear families are physically viable for your machine.
Speed vs. Load Trade-offs: Engineers must calculate maximum RPM limits alongside torque capacity requirements. High-speed applications demand gradual tooth engagement. High-load applications require larger tooth surface areas to distribute mechanical stress effectively.
NVH (Noise, Vibration, Harshness) Limitations: You must factor in environmental and operational noise compliance. Factory floors and consumer products have strict decibel limits. Certain gear profiles generate aggressive vibration frequencies. These vibrations can resonate through housings and damage sensitive electronics.
Power Loss Tolerances: Mechanical inefficiency translates directly into heat generation. You must understand how this energy loss affects the entire system. High-friction setups often require active cooling infrastructure. This adds bulk, complexity, and expense to your final product assembly.
Parallel shaft transmission represents the most common industrial configuration. Designers usually choose between two primary profiles for this layout.

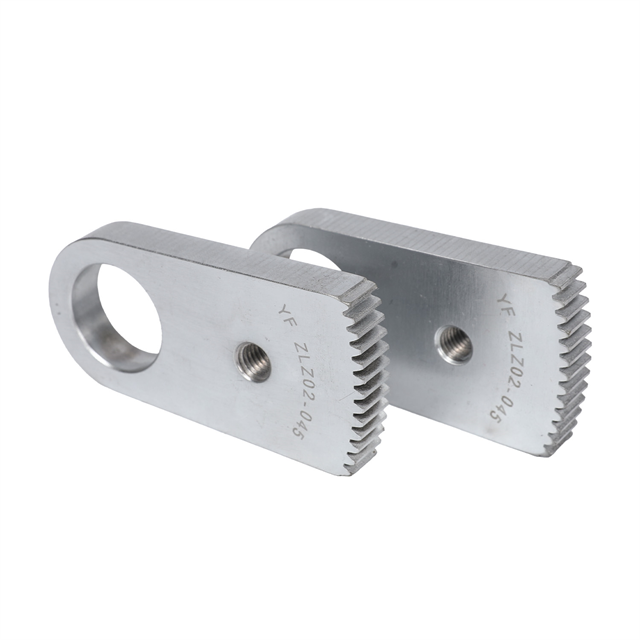

These components feature straight teeth aligned parallel to the rotational axis. A standard Spur gear represents the fundamental building block of mechanical engineering.
Pros: They generate zero axial thrust during operation. They offer exceptional mechanical efficiency, typically exceeding 98 percent. Manufacturing them costs significantly less than complex alternatives.
Cons: Their straight teeth collide simultaneously during engagement. This sudden impact causes noticeable vibration. They generate significant noise, especially at higher RPMs.
Best for: You should use them in low-speed applications. They excel in conveyor systems, simple winches, and highly cost-constrained projects. They work perfectly when operating noise is not a limiting factor.
Helical profiles modify the straight-tooth design by cutting the teeth at a specific angle. This simple geometric change drastically alters their performance envelope.
Pros: Angled teeth engage gradually rather than all at once. This rolling action enables much higher load capacities. They deliver exceptionally quiet and smooth operation even at extreme rotational speeds.
Cons: The helical angle inherently creates axial thrust forces. This energy pushes the gear along the shaft during rotation.
Implementation Risk: You must manage this axial load. The system requires heavier, more expensive thrust bearings. You will also need stiffer housings to prevent deflection. These requirements increase the overall assembly complexity.
Routing power around corners introduces distinct mechanical challenges. You typically choose between intersecting or non-intersecting gear configurations to achieve a 90-degree directional shift.
These components feature a conical shape. They allow power transmission between intersecting shafts.
Function: They transfer power around a 90-degree corner with minimal energy loss. Their rolling action maintains high mechanical efficiency.
Spiral vs. Straight: Straight variants function like traditional flat gears, causing similar noise at speed. Spiral variants feature curved teeth. They offer smoother, quieter operation similar to helical designs.
Implementation Risk: They are highly sensitive to mounting alignment. Poor housing rigidity will shift the contact pattern off-center. This misalignment causes rapid, catastrophic tooth wear. You must enforce strict machining tolerances on the gearbox housing.
This unique setup pairs a threaded screw (the worm) with a toothed wheel. It handles spatial layouts where shafts cross but do not physically intersect.
Function: They transfer power between non-intersecting, perpendicular shafts. They are absolutely ideal for single-stage, high-ratio speed reduction. You can achieve massive reduction ratios (up to 100:1) in incredibly compact spaces.
The Safety Factor: They possess inherent self-locking characteristics. A load cannot easily back-drive the system. This makes them critical safety components for hoists, lifts, and elevators.
The Efficiency Penalty: They operate using high sliding friction rather than rolling friction. Efficiency can drop below 60 percent in high-reduction setups. This generates massive amounts of heat. You must plan for heat dissipation. They also require specific bronze and steel material pairings and specialized synthetic lubricants.
Analyzing technical specifications side-by-side simplifies the decision process. You should review a detailed gear types comparison to visualize these functional differences instantly.
Industrial Gear Profile Performance Summary
Gear Type | Shaft Configuration | Max Efficiency (%) | Relative Cost | Noise Level | Primary Advantage |
|---|---|---|---|---|---|
Straight / Flat | Parallel | 98%+ | Low | High | Cost-effective power transfer |
Helical | Parallel | 96-98% | Medium | Low | High-speed, quiet operation |
Bevel | Intersecting Perpendicular | 95-98% | Medium-High | Varies (Spiral is quiet) | Efficient 90-degree turn |
Worm | Non-intersecting Perpendicular | 50-90% | Medium | Low | Compact high reduction & safety |
You must weigh these parameters against complete system economics. Do not evaluate components based purely on their upfront purchase price. An inexpensive gear might require frequent replacement in a high-torque environment. High sliding friction components lose massive amounts of energy to heat. This inefficiency increases long-term electricity consumption. You also need to evaluate the surrounding infrastructure. A profile requiring heavy-duty thrust bearings and custom-machined housings increases the financial burden of the entire assembly. Always view the component as just one piece of a broader economic puzzle.
Engineers often make mistakes during the integration phase. A perfectly calculated gear profile will fail if the surrounding mechanical ecosystem does not support it properly. You must monitor three critical implementation risks.
Friction types dictate fluid requirements. Sliding friction found in perpendicular, non-intersecting configurations generates extreme surface heat. These systems require specific viscosity grades and specialized additive packages. You often need expensive synthetic polyglycol (PAG) oils. Conversely, components utilizing rolling friction perform beautifully with standard mineral-based gear oils. Overlooking this distinction guarantees rapid thermal breakdown and catastrophic metal-on-metal wear.
You must understand standard AGMA or DIN quality classes. These standards define tooth spacing, runout, and profile geometry limits. Specifying an AGMA 12 rating for a simple low-speed conveyor is a costly error. Over-specifying tolerances requires precision grinding, which skyrockets manufacturing costs needlessly. However, under-specifying tolerances for high-speed aerospace applications guarantees severe vibration and premature failure. You must align the quality class exactly with your application speed and load.
The rotating component itself only represents part of the equation. Profiles generating axial thrust or requiring precise backlash controls demand extremely robust housings. Deflection in the gearbox casing alters the tooth contact pattern under load. You must invest heavily in precision-machined, highly rigid enclosures. This reality adds considerable weight and manufacturing expense to your system-level design.
Moving from theory to production requires a methodical validation process. Follow these final steps to ensure your selected profile operates flawlessly in the real world.
Before finalizing your CAD models, you must verify several parameters mathematically. Re-check your maximum torque calculations under dynamic shock loads. Validate your thermal limits to ensure the chosen lubrication will not vaporize. Confirm that your selected bearings can actually handle the continuous axial thrust generated by your design. Do not approve a design until these checks pass.
Your manufacturing partner dictates the final quality of your transmission. You should ask potential manufacturers detailed questions. Inquire about their specific heat treatment processes like carburizing or induction hardening. Ask if they have the machining capabilities to produce custom modules or specialized pressure angles. Demand standard material certifications to verify metal quality before production begins.
Are you ready to move forward with your design? You should submit your technical drawings for a comprehensive manufacturing feasibility review. Reach out to a qualified engineering team today. Request a professional consultation to finalize your custom gear specifications and ensure peak system performance.
There is no universal "best" gear available. You must select the most appropriate geometry based on your specific load, space, and economic constraints.
Prioritize mechanical efficiency and low noise if your application involves high-speed, continuous operation.
Rely on self-locking, perpendicular configurations when space is extremely tight and load safety is critical.
Factor in the surrounding system requirements. Always account for the cost of thrust bearings, housing rigidity, and specialized lubrication systems when evaluating your overall powertrain design.
A: Straight/flat profiles and straight bevel variants offer the highest efficiency. They often exceed 98 percent power transmission efficiency. This superior performance stems from their pure rolling action, which minimizes sliding friction and drastically reduces heat generation during operation.
A: No, you cannot replace them directly without modifying the existing bearing setup. Helical profiles introduce significant axial thrust forces due to their angled teeth. Standard bearings cannot handle these lateral loads. You must install specialized thrust bearings to manage the new forces safely.
A: Engineers use them because they provide an unmatched ability to achieve massive speed reduction ratios in very tight spaces. Additionally, their inherent self-locking characteristic prevents loads from back-driving the motor. This makes them essential for hoists, lifts, and critical safety mechanisms.
A: You can reduce noise by switching from straight-cut teeth to angled or spiral profiles. They engage gradually, eliminating impact noise. You can also improve the manufacturing quality by requesting a higher AGMA class. Finally, utilizing specialized dampening lubricants helps absorb excess vibration and sound.
