Miscalculating operating parameters leads to devastating mechanical consequences. Premature wear, catastrophic failures, and extensive system downtime regularly stem from improper gear specification. The operational toll of these engineering errors scales rapidly in heavy industrial environments. A single failed component can halt an entire production line.
Many engineers rely heavily on basic sizing calculators to generate baseline figures. However, real-world applications demand balancing theoretical physics against the harsh realities of operational environments. A standard output number cannot account for dynamic shock loads, aggressive duty cycles, or unexpected thermal limits. Physics dictates failure just as strictly as it dictates success.
This guide delivers a strictly analytical framework for evaluating mechanical parameters. We will explore how to dissect load, speed, and torque data to narrow down the exact topology you need. You will learn how to bypass vendor marketing hype and make evidence-driven engineering decisions for industrial applications.
Table of Contents
Torque over Horsepower: Initial selection must prioritize application torque requirements (peak vs. continuous) over generic motor horsepower ratings.
Service Factors dictate lifespan: Failing to account for shock loads, duty cycles, and environmental variables will invalidate baseline load/speed calculations.
Topology trade-offs: Every gear type (e.g., helical, spur, worm) introduces specific trade-offs between efficiency, noise, load capacity, and footprint.
Holistic matching: Proper gear selection requires simultaneous evaluation of the motor combination, thermal limits, and mechanical yield limits.
You must establish baseline success criteria and mathematical relationships before reviewing vendor catalogs. Skipping this foundational physics phase guarantees a mismatched drivetrain. We need hard numbers derived from actual application mechanics.
Speed defines the fundamental motion profile of your system. You first define the Input RPM driven by the prime mover (often an AC induction or servo motor). Next, you identify the desired Output RPM required by the driven load. The relationship between these two figures dictates your core reduction needs.
The core formula node establishes the exact Gear Ratio requirements. You divide the motor input speed by the application output speed. A 1750 RPM motor driving a 50 RPM conveyor requires a 35:1 ratio. Engineers must also account for variable frequency drives (VFDs). Adjusting motor speeds dynamically alters the baseline ratio requirements and operational parameters.
Horsepower sells motors, but torque actually moves the load. You must differentiate clearly between Continuous Torque and Peak Torque. Continuous running torque sustains the baseline steady-state load during normal operation. Peak torque handles the extreme momentary demands of starting, stopping, and sudden system jams.
Never ignore inertia and acceleration torque. Dynamic applications fail frequently when designers overlook the energy required to accelerate massive loads from a dead stop. You must calculate the inertia of the driven load reflected back to the motor. Failing to match peak starting torque to this reflected inertia represents a very common failure point in industrial automation.
Not all loads stress a gearbox equally. We classify loads into three distinct categories:
Uniform loads: Fans and centrifugal pumps run smoothly without sudden spikes.
Moderate Shock loads: Multi-cylinder pumps and heavily loaded conveyors introduce periodic stress variations.
Heavy Shock loads: Rock crushers and punch presses hit the mechanical system like a hammer.
Beyond rotational stress, you must evaluate directional forces. Overhung (Radial) loads push perpendicular to the gear shaft. Pulleys and sprockets generate massive overhung loads. Thrust (Axial) loads push parallel to the shaft. These forces drastically impact your shaft diameter requirements and bearing selections.
Translating theoretical parameters into shortlist criteria requires a logical, step-by-step evaluation process. Do not guess. Follow strict engineering guidelines to ensure long-term reliability.
Step 1: Determine the Service Factor (SF)
You must use AGMA (American Gear Manufacturers Association) or ISO standards to adjust your baseline torque. Service factors act as safety multipliers. They account for daily operating hours and the statistical probability of shock loads. A system running 24 hours a day requires a much higher multiplier than a system running three hours intermittently.
Step 2: Calculate Design Torque
You calculate the final design torque by multiplying your operational running torque by the chosen Service Factor. This sets the true mechanical requirement for the gear train. Never size a gearbox based on raw operational torque alone. The design torque ensures the teeth survive peak dynamic events.
Step 3: Check Thermal vs. Mechanical Ratings
Mechanical yield limits tell you when a tooth will physically snap under load. Thermal limits tell you when the gearbox will overheat and destroy the lubricant. A gear might survive mechanical stress easily but fail due to thermal overload. Enclosed gearboxes trap intense heat generated by friction. Heat dissipation limits dictate continuous performance capabilities far more often than sheer mechanical strength.
AGMA Service Factor Guidelines
Load Classification | Up to 3 Hours/Day | 3 to 10 Hours/Day | Over 10 Hours/Day |
|---|---|---|---|
Uniform Load | 0.80 - 1.00 | 1.00 | 1.25 |
Moderate Shock | 1.00 | 1.25 | 1.50 |
Heavy Shock | 1.50 | 1.75 | 2.00+ |
Categorizing solutions helps map specific mechanical features to desired performance outcomes. Every topology introduces unique advantages and rigid limitations.
A Helical gear excels in high-speed, high-load applications. The angled teeth engage gradually rather than abruptly. This gradual engagement provides exceptionally smooth and quiet power transmission. They dominate the industrial manufacturing sector for steady-state power delivery.
However, this design introduces a specific risk. The helix angle naturally creates axial thrust loads pushing against the shaft. You must integrate specific tapered roller bearings or thrust bearings to absorb these forces. Neglecting axial thrust management leads directly to rapid bearing disintegration.

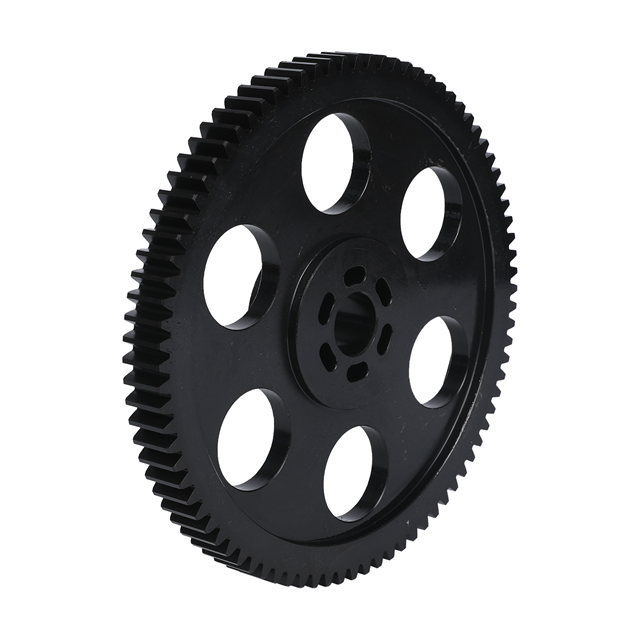

Spur designs fit perfectly into low-speed applications prioritizing pure simplicity. Because their teeth run parallel to the shaft, they generate zero axial thrust. This simplifies bearing requirements immensely. They offer highly efficient power transmission at lower velocities.
Their primary risk involves noise and vibration. The straight teeth collide simultaneously across their entire face width. This abrupt engagement creates high noise levels at elevated RPMs. They also carry lower overall load capacities compared to helical equivalents of the same physical size.
Worm and bevel designs fit right-angle mounting requirements perfectly. Worm setups deliver massive reduction ratios within incredibly compact spaces. A single worm set can achieve ratios exceeding 60:1.
Their major risk stems from mechanical efficiency. Sliding friction dominates the mesh of a worm set. This sliding generates intense heat and drastically lowers mechanical efficiency. Furthermore, high-ratio worm sets introduce potential self-locking constraints. While self-locking prevents back-driving, it can cause severe system damage during sudden power losses if inertia remains high.
Theoretical math only gets you halfway to a functioning system. Hidden operational risks routinely disrupt standard gear calculations. You must anticipate the physical environment.
Speed and load dictate your choice between splash lubrication, synthetic oils, or heavy grease. High-speed systems often require pressurized lubrication or low-viscosity synthetic oils to manage heat. Low-speed, high-torque systems rely on extreme-pressure (EP) additives. Your lubrication choice directly impacts preventive maintenance schedules and cooling requirements.
You must evaluate the acceptable play between mating gear teeth. We call this play backlash. Standard applications tolerate minor backlash easily. However, servomotor and precise positioning applications demand near-zero backlash. Excessive play in an automated robotic arm translates to massive positioning errors at the tool tip. High-precision harmonic or cycloidal designs become necessary here.
The operating environment aggressively dictates material selection. Extreme ambient temperatures degrade standard mineral oils rapidly. Corrosive chemical washdowns in food processing plants destroy standard carbon steel components. Abrasive dust in mining operations accelerates tooth wear exponentially. You must specify hardened stainless steel, bronze alloys, or specialized polymers based on the exact environmental hazards present.
Finalizing your decision requires evaluating reliable data rather than trusting slick marketing claims. You must interrogate vendor specifications thoroughly.
Learn to read manufacturer sizing charts critically. Identify the transparent assumptions embedded in their baseline testing. Vendors often publish continuous ratings based on ideal laboratory conditions. They assume uniform loads and perfect 20°C ambient temperatures. You must adjust their nominal catalog ratings using your independently calculated Service Factors.
Effective gear selection often forces a debate between standard and custom configurations. Modifying a commercial off-the-shelf (COTS) gearmotor offers rapid lead times and proven reliability. Engineering a completely custom gear train provides exact spatial integration and optimized performance. Evaluate your design flexibility and deployment timelines carefully. Choose standard configurations when possible, but pivot to custom engineering when environmental extremes demand it.
Your next-step actions should focus on validation. Request detailed 3D CAD models from the vendor to confirm physical envelope constraints. Review the exact warranty conditions tied to Service Factors. Manufacturers often void warranties if you apply a uniform-load gearbox to a heavy-shock application. Finally, prototype critical high-volume assemblies before committing to full-scale procurement.
Successful mechanical design relies on a strict equation combining precise Load, Speed, and Torque math with conservative Service Factor application. You cannot guess operational parameters or trust generic horsepower ratings. Real-world durability demands balancing theoretical physics against the thermal and environmental realities of your specific facility.
Prioritize accurate inertia calculations, manage radial loads proactively, and specify topologies based on proven engineering constraints. Encourage your design teams to consult specialized technical configuration tools to validate baseline numbers. Always confirm your mathematical assumptions before executing procurement orders.
A: Divide the motor input speed (RPM) by your required application output speed. Ensure the resulting torque multiplier meets your operational load demands. Always verify that this ratio falls within the mechanical efficiency limits of your chosen topology.
A: Under-calculating overhung load leads directly to premature bearing failure and severe shaft deflection. This deflection causes catastrophic gear misalignment, stripping the gear teeth under load and destroying the internal seals.
A: High cycle rates, reversing loads, or heavy shock conditions drastically reduce mechanical fatigue life. A higher service factor multiplier ensures the selected components possess enough reserve strength to survive these dynamic stresses without premature failure.
A: Servomotors require zero-backlash, extremely high torsional stiffness, and exact inertia matching. Dealing with high-torque, precise-positioning servomotors forces designers to abandon standard industrial gearboxes in favor of precision harmonic or cycloidal drives.
