A helical gear has teeth cut at an angle to the axis. This design helps the gears work smoothly and with less shock. Helical gears are used in many industries. They are quieter and move power better than other gears.
Helical gears make up 20% of the world’s industrial gear market.
Their angled teeth lower noise and make them last longer.
Industry | Applications |
|---|---|
Automotive Engineering | Transmissions, differentials, steering assemblies |
Aerospace | Helicopter rotors, turbine engines, flight control mechanisms |
Industrial Machinery | Conveyor systems, heavy-duty equipment |
Robotics and Automation | Motion control, accuracy, reduced backlash |
Yongfeng Gear makes strong helical gears for hard engineering jobs.
Helical gears have slanted teeth. This helps lower noise and shaking. Machines run smoother and quieter with them.
These gears can carry heavy loads better than others. This helps them last longer. They also need fewer repairs.
Picking the right materials for helical gears is important. Strong steels or light aluminum make them last longer. These materials also help them work better.
Helical gears are used in many fields. They are found in cars and robots. People use them because they work well and are reliable in hard jobs.
Custom helical gears can be made for special needs. This makes sure they work their best for different uses.

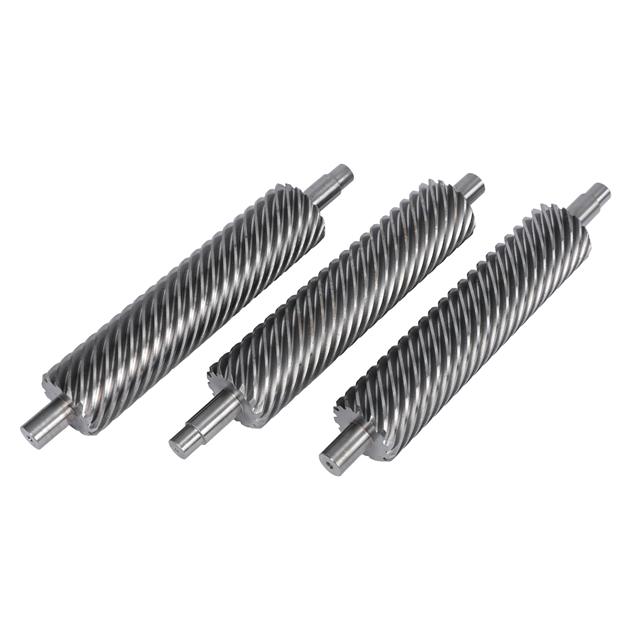

A helical gear is easy to spot because its teeth are angled. The teeth do not go straight across like a spur gear. They slant across the gear’s surface. This slant is called the helix angle. Most helical gears use a helix angle between 15° and 30°. Some special gears have angles up to 45°. The angled teeth help the gear carry more weight and make less noise.
The helix angle is very important in the gear’s design. It changes how the gear works and how much force it can take.
Here is a table that shows common helix angles:
Helix Angle (degrees) | Description |
|---|---|
6, 8, 10, 12, 15, 20 | These are normal angles for helical gears |
25, 30, 35, 40 | Bigger angles for double or herringbone gears |
Helical gears are made from many materials. Steel alloys are used most because they are strong and last long. Aluminum alloys are good when you need a lighter gear. Thermoplastics are used for lighter jobs and quieter gears.
Material Type | Description | Common Applications |
|---|---|---|
Steel Alloys | Carbon steel, alloy steel, stainless steel | Helical gears, gear racks |
Aluminum Alloys | Light, strong for its weight | Helical gears, gear racks |
Thermoplastics | Light, can be shaped or molded | Helical gears, spur gears |
Yongfeng Gear uses new materials and modern machines to make strong helical gears. Their gears last longer and work well in tough places.
When a helical gear works, the angled teeth touch slowly. The gear starts to move force at one spot. Then, the contact spreads across the tooth as it turns. This smooth movement lowers noise and vibration. The force spreads over many teeth at once. This helps the gear handle more weight.
Helical gears can work with shafts that are side by side or crossed.
The angled teeth make a sideways force and a push along the shaft.
The slow contact makes the gear quiet, even when it spins fast.
Here is a table that compares helical gears and spur gears:
Feature | Helical Gears | Spur Gears |
|---|---|---|
Load Handling | Handles sideways and push loads | Handles sideways loads only |
Shaft Orientation | Works with parallel or crossed shafts | Works with parallel shafts only |
Engagement | Starts at a point, spreads across the tooth | Full tooth touches at once |
Load Build-up | Builds up slowly | Builds up quickly |
Vibration | Low | High |
Noise Level | Quiet, even when spinning fast | Makes more noise |
Manufacturing Complexity | Harder to make | Easier to make |
Helical gears work better in fast and heavy machines. They engage smoothly and handle strong forces. Many industries use them because they are reliable.
Yongfeng Gear has made precise helical gears for over 20 years. Their team can give you gears that fit your needs, whether you want regular parts or special designs.
Helical gears work quietly and smoothly. The angled teeth do not hit all at once. They touch slowly and share the force over many teeth. This makes less noise and less shaking. Machines feel steady and quiet, even when moving fast or carrying heavy things.
Here is a table that shows what helps helical gears run so smoothly:
Feature | How It Helps Smooth Operation |
|---|---|
Gradual engagement | Makes less noise and shock when power moves |
Increased contact ratio | Lowers shaking and keeps machines quieter |
Diagonal teeth design | Keeps power moving smoothly for a long time |
Load distribution | Shares the force over many teeth |
Durability | Less wear means gears last longer |
Each part of the design works together for a better machine. Helical gears often work at 94% to 98% efficiency. This means you waste less energy and get more work done.
You want gears that last a long time, even in hard jobs. Helical gears are special because they use strong materials and smart designs. At YF Gear, you get gears made from tough steels, stainless steel, and special coatings. These materials help stop wear, rust, and damage.
Here is a table showing how different materials help your gears last longer:
Material Type | Benefit |
|---|---|
High-Performance Steels | Strong and tough, resist wear and breaking |
Stainless Steels | Do not rust, work well in wet or rough places |
Surface Coatings | Lower friction, protect from scratches |
Thermal Treatments | Make the gear harder and last longer |
When you use helical gears from YF Gear, they can last for years. For example, gears in excavators last 5-7 years. Gears in cranes can last up to 8 years. This means your machines stop less and need fewer repairs.
Tip: Picking the right material and design for your helical gears helps your equipment last longer and work better.
When you design helical gears, you need to focus on several important parameters. Each one affects how your gear works and how long it lasts. Here is a list of the main factors you should consider:
Helix Angle: This angle controls how smooth and quiet your gear runs. A larger helix angle can make your gear quieter and stronger, but it also increases the force along the shaft.
Tooth Profile: Most helical gears use an involute curve. This shape helps your gear move smoothly and reduces wear.
Axial Load: Helical gears create a force along the shaft. You need strong bearings to handle this load.
Overlap Ratio: This ratio shows how many teeth touch at once. More overlap means less vibration and better load sharing.
Direction of Helix: You must choose left-hand or right-hand helix. This choice affects how you assemble your gear train and manage axial loads.
Material Selection: Pick materials that match your needs for strength, noise, and wear resistance.
Manufacturing Methods: The way you make your gear changes its quality and cost.
Heat Treatment: This process makes your gear stronger and helps it last longer.
Precision and Tolerances: Tight tolerances keep your gear efficient and quiet.
Lubrication: Good lubrication stops wear and overheating.
Tip: If you increase the helix angle, you can lower noise by up to 15 dB. Tighter angles also help your gear last longer, but you need to use special bearings to handle the extra force.
YF Gear offers custom design support. Their engineers help you choose the right parameters for your gear train. You get advice on materials, tooth shape, and helix angle to match your project.
You need to calculate the load capacity before you use helical gears in your machines. Modern methods, like the DIN/ISO-compatible calculation, give you accurate results. These methods look at tooth shape, material, and how the teeth touch. You can predict how much weight your gear can handle and how long it will last.
Here is a table showing what affects gear design:
Factors Affecting Gear Design |
|---|
Tooth & Blank Proportions |
Metallurgy |
Lubrication |
Profile & Lead Modification Requirements |
Gear Tooth Tolerances |
When you work with YF Gear, you get help with all these calculations. Their team uses advanced software and testing to make sure your helical gears meet your needs. You can trust their support for both standard and custom gear solutions.
When you pick helical gears, your machines work better. The angled teeth help them run smoother and quieter. You will hear less noise, even when the machine is fast. The teeth touch each other slowly, so there is less shaking and less sudden force. This helps your machines last longer and need fewer repairs.
Helical gears are 10-15 dB quieter than spur gears at normal speeds (1000-3000 RPM).
At faster speeds, they can be up to 20 dB quieter.
The slow tooth contact and more teeth touching make this happen.
Helical gears also handle heavy loads well. The force spreads out over many teeth at once. This means each tooth has less stress. The gear does not wear out or bend as fast. You can use these gears for big jobs without worrying about them breaking early.
The angled teeth give more space for the teeth to touch.
More contact area means the gear can hold more weight.
Sharing the load keeps the gear strong and helps it last longer.
Helical gears move power well too. The diagonal teeth let energy move smoothly. These gears work at 94% to 98% efficiency. You waste less energy and get more work done with the same power.
Note: Helical gears are best for fast and strong machines. They are great for tough jobs where you need strength and dependability.
Yongfeng Gear uses strong materials and careful building to make gears that last. They can make special gears for you, whether you need one or a whole set.
You might want to know how helical gears are different from spur gears. Here is a simple table to show you:
Feature | Helical Gears | Spur Gears |
|---|---|---|
Noise Level | 10-20 dB quieter at most speeds | Louder, especially at high RPM |
Load Capacity | Higher, due to larger contact area | Lower, less surface contact |
Efficiency | 94%-98% (slight loss from thrust) | Up to 99% (minimal friction) |
Durability | Longer lifespan, less wear | Shorter lifespan, more wear |
Power Transmission | Smooth and steady | Can be jerky at high speeds |
Best Use | High load, high speed, quiet needs | Simple, low-speed applications |
Helical gears are quieter because the teeth touch slowly.
More teeth share the force, so they can hold more weight.
The design helps move power smoothly.
Spur gears can be a little more efficient, but they are louder and wear out faster in hard jobs.
If you need gears for tough work, helical gears from Yongfeng Gear are a good pick. They can carry heavy loads, stay quiet, and last a long time. You can count on their team to help you get the right gears for your machines.
Helical gears are used in many industries. They help machines work quietly and carry heavy loads. These gears make machines last longer. You see them where strength and reliability are important.
Here is a table that shows where helical gears are used:
Sector | Application Description |
|---|---|
Heavy Industry | Used in conveyors, crushers, and extruders for load-bearing resilience. |
Automotive | Utilized in electric vehicle drivetrains for weight-efficient torque conversion. |
Renewable Energy | Essential for wind turbine pitch control systems, providing precision under variable loads. |
Food Processing | Corrosion-resistant variants ensure hygiene compliance in bottling lines. |
Helical gears are also found in textile machines and plastic equipment. They work in earthmoving machines and fertilizer plants. Printing presses use them too. Their design helps them do hard jobs and keep machines quiet.
Yongfeng Gear has made custom helical gears for many years. Their team can help you pick the right gear for your needs. You can get standard parts or special designs.
Helical gears are important in cars and robots. In car transmissions, these gears touch slowly. This makes gear shifts quieter. The diagonal teeth help the gears handle more force. Your car runs smoothly and lasts longer.
Robots use helical gears for accurate movement. These gears keep robots quiet and efficient. They can carry heavy loads, which helps robotic arms and machines. You get smooth movement and less shaking. Robots work better with these gears.
Helical gears make cars and robots run quietly.
They help moving parts last longer and work better.
You get strong power for tough jobs.
Yongfeng Gear helps car and robot companies with custom gears. Their engineers help you choose the best gear for your project. Your machines will work well and do their jobs right.
When you pick a helical gear, your machines run quietly. The power moves smoothly and does not waste much energy. You get less shaking and strong load sharing. This helps your equipment work better and last longer. Yongfeng Gear has lots of experience making gears. They use modern tools and can design gears just for you. If you want gears that fit your needs, you can ask for a custom gear. YF Gear will help your machines work well for a long time.
Helical gears have angled teeth. These teeth touch each other slowly and smoothly. You hear less noise because the force spreads over several teeth at once. Machines run quieter and feel more stable.
Yes, you can use helical gears for high-speed machines. The angled teeth help reduce vibration and noise. You get smooth power transfer, even when your machine runs fast.
You should think about strength, wear, and the work environment. For heavy loads, pick steel. For light weight, choose aluminum or nylon. Stainless steel works best in wet or harsh places.
Tip: Ask YF Gear for help if you are not sure which material fits your needs.
You can use custom helical gears in many places:
Car transmissions
Industrial robots
Wind turbines
Food processing machines
YF Gear helps you design gears for your special project.
