Gear failure in production or field applications carries disproportionate costs in downtime, warranty claims, and reputational damage. A single stripped tooth can quickly halt an entire assembly line. Moving beyond basic material data sheets requires understanding how mechanical stress, thermal environments, and lubrication realities interact. Engineers cannot rely on guesswork when pairing mating surfaces. They must calculate fatigue limits accurately based on real-world conditions.
This guide provides an objective, engineering-focused framework for gear material selection. We strip away generic claims to focus on verifiable performance metrics and critical implementation risks. You will learn exactly how to weigh different metals and polymers against your specific application demands. By analyzing load capacities, environmental limits, and manufacturing economics, you can make informed decisions. We aim to help you specify components that achieve optimal reliability without unnecessary over-engineering.
Carbon & Alloy Steel: The baseline for power density and fatigue strength; requires rigorous lubrication and corrosion management.
Stainless Steel: Essential for washdown or corrosive environments but carries high risks of galling and adhesive wear if not properly specified.
Plastic (Polymers): Excels in noise reduction and self-lubricating scenarios, but strictly limited by thermal expansion and yield strength.
The Golden Rule of Specification: Never swap materials one-to-one without recalculating load capacity, thermal limits, and mating material compatibility.
Table of Contents
Every mechanical gear train balances torque transmission, operating speed, and environmental exposure. Defining your primary failure mode dictates your starting material category. You must anticipate how a component will ultimately fail in the field. Tooth breakage usually indicates insufficient yield strength or heavy shock loads. Surface wear points toward inadequate hardness or poor lubrication. By isolating these failure modes early, engineers can narrow down their material choices efficiently.
A successful specification achieves the required AGMA (American Gear Manufacturers Association) service factor. It does this while minimizing over-engineering costs. You want to avoid using expensive stainless steel when a coated carbon steel alternative meets compliance. Designing purely for maximum strength often inflates budgets needlessly. Precision engineering requires matching the material properties exactly to the application's operating profile.
Consider these common failure modes when evaluating materials:
Macropitting: Caused by high contact stresses exceeding surface fatigue strength.
Abrasive Wear: Occurs when external contaminants grind against tooth flanks.
Bending Fatigue: Results in root cracks from repeated cyclical loading.

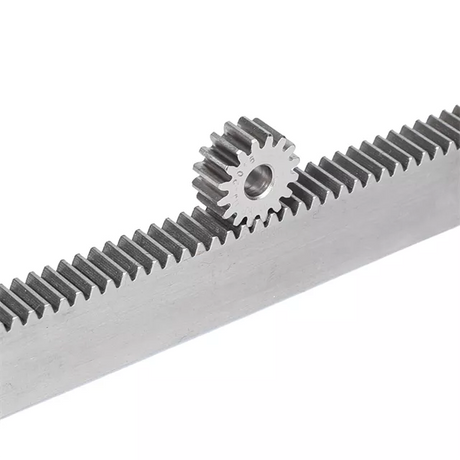

Carbon and alloy steels dominate high-torque, heavy-duty industrial power transmission. These materials provide the baseline for industrial machinery, automotive transmissions, and heavy robotics. They offer exceptional fatigue strength and high surface hardenability. Manufacturers routinely use carburizing or induction hardening to create a tough core with a wear-resistant outer shell. This dual-property nature gives them a highly predictable wear life.
Despite these strengths, carbon steel has strict limitations. It remains highly susceptible to oxidation. Systems demand constant lubrication to prevent rapid degradation. Furthermore, steel components add significant weight to moving assemblies. A standard steel gear is the industry default, but it fails rapidly in caustic environments. Engineers must specify protective coatings or enclosed oil baths to maintain longevity.
Stainless steel serves as the standard for food processing, medical devices, marine applications, and highly corrosive atmospheres. Materials like 304 and 316 grades feature a passive oxide layer. This chromium-rich layer prevents rust and meets strict FDA and USDA sanitation standards. Equipment undergoing harsh chemical washdowns relies entirely on these properties.
However, stainless steel poses distinct mechanical challenges. It possesses a lower baseline load capacity than hardened alloy steel. Austenitic grades cannot be heat-treated for high surface hardness. This creates a high susceptibility to galling during metal-on-metal meshing. Cold welding occurs frequently when lubrication is marginal. You must manage these friction risks carefully during the design phase.
Plastic and polymer gears excel in consumer electronics, automotive cabin actuators, and unlubricated environments. They thrive in applications requiring dry running capabilities. These materials offer inherent vibration dampening and significant noise reduction. They also feature very low mass, reducing inertia in start-stop mechanisms. Moreover, polymers like POM provide excellent resistance to many industrial chemicals.
Polymers do face strict operational boundaries. They exhibit low yield strength compared to metals. They remain highly vulnerable to thermal expansion, as plastics retain heat rather than dissipating it. Dimensional instability plagues certain polymers due to moisture absorption. Untreated Nylons, for example, swell in humid environments. This swelling alters the pitch diameter and eliminates designed backlash.
Table: Core Gear Material Feature Comparison
Material Category | Best For | Primary Strengths | Major Limitations |
|---|---|---|---|
Carbon / Alloy Steel | High-torque power transmission | High fatigue strength, hardenability | Oxidation risk, requires constant lube |
Stainless Steel | Corrosive or washdown areas | Passive oxide layer, FDA compliant | Galling risk, lower load capacity |
Plastics (Nylon, POM) | Noise reduction, dry running | Self-lubricating, lightweight | Thermal expansion, moisture absorption |
You must match the material's yield strength and surface hardness against maximum dynamic loads. Do not look solely at continuous operating torque. Shock loads often cause catastrophic failures in under-specified materials. Calculate the continuous operating hours expected between maintenance intervals. High-cycle applications usually demand case-hardened alloy steels to resist surface pitting. Low-cycle applications might function perfectly well using machined polymers or unhardened stainless.
Determine immediately if the system allows for an enclosed oil bath or continuous grease application. Many environments prohibit liquid lubricants entirely to avoid contamination. Food processing lines and paper printing machines often forbid grease near the product. If your system demands unlubricated operation, this pushes your choice toward self-lubricating plastics. Specialized bronze alloys also perform well in low-lube, low-speed conditions.
Evaluate ambient and operational temperature extremes. Heat easily warps and softens plastics, reducing their load capacity dramatically. Cold extremes can make certain polymers brittle, leading to shatter risks upon startup. Regulatory requirements also dictate material choices heavily. Medical and food industries force the use of specific food-grade stainless steels. Alternatively, they require FDA-approved polymers like specific grades of Acetal.
Compare low-volume manufacturing costs against high-volume production economics. CNC machining generally favors metals for low-volume runs. Tooling costs remain low, though piece prices remain moderate to high. Conversely, high-volume injection molding economics heavily favor plastics. Once you amortize the initial mold cost, plastic components offer massive cost reductions at scale. You must calculate the breakeven point between machining steel and molding plastic.
Even perfectly calculated loads will fail if engineers ignore material compatibility. Mating different materials introduces complex tribological interactions. You must proactively troubleshoot these combinations.
Meshing two stainless steel gears of the exact same alloy and hardness causes severe problems. This combination often leads to rapid adhesive wear and galling. The microscopic surface peaks friction-weld together and tear apart. This destroys the tooth profile quickly.
Mitigation: Use dissimilar alloys when designing a mesh. Pair a 316 austenitic grade with a 416 martensitic grade.
Alternative Mitigation: Apply specialized anti-galling surface treatments or solid film lubricants to create a barrier between the metals.
Pairing metal with plastic offers excellent noise reduction, but it carries a hidden risk. A rough surface finish on a metal component acts like a file. It aggressively shreds the mating plastic tooth surface during operation. Furthermore, the plastic insulates the mesh, retaining frictional heat.
Mitigation: Implement strict surface finish controls on the metal component. Aim for a roughness average (Ra) of 16 microinches or better.
Alternative Mitigation: Optimize the metal tooth geometry to manage heat dissipation. Make the metal gear larger if possible to act as a heat sink.
Direct replacement of a metal component with a plastic one often fails. Many engineers assume identical dimensions will yield identical performance. Plastic retains heat and expands at a much higher rate than steel. This thermal expansion alters the operating backlash. As the plastic swells, the teeth bind, causing motor overload or sudden tooth shear.
Mitigation: Recalculate backlash tolerances based on the polymer's specific coefficient of thermal expansion.
Alternative Mitigation: Account for moisture absorption rates. Switch from Nylon to POM (Acetal) if operating in highly humid environments.
Follow a structured methodology to eliminate inappropriate materials quickly. This logic tree prevents emotional or habitual decision-making.
Isolate the Non-Negotiables: Filter your options immediately by environmental constraints. If the application operates underwater, you eliminate standard carbon steel instantly. If the design prohibits external lubrication, you eliminate most bare metals. Let the absolute boundaries narrow your list first.
Run the Math: Calculate your required torque, maximum RPM, and expected thermal limits. If dynamic loads exceed polymer capabilities, plastics are immediately disqualified. This remains true regardless of how strictly you need noise reduction. Physics dictates the baseline requirements.
Cost-Volume Analysis: For the remaining viable materials, compare the full lifecycle economics. Combine raw material prices, machining or tooling costs, and expected maintenance intervals. A cheaper plastic might require an expensive injection mold. An expensive stainless alloy might eliminate costly weekly lubrication routines. Look at the comprehensive expenditure over the machine's life.
Prototyping: Never move straight to mass production with a new material combination. Request material test certificates from your supplier. Run accelerated lifecycle testing on a prototype rig. Validate wear patterns and thermal stability before approving full production runs.
There is no universally superior material for every mechanical drive. Carbon steel wins definitively on raw power and durability. Stainless steel dominates in environmental survival and sanitation compliance. Plastic excels when designs demand quiet, lightweight, and dry operation. Successful engineering requires respecting these physical boundaries.
Consider these final takeaways for your next project:
Always define your primary failure mode before looking at material catalogs.
Adjust your backlash and tooth geometry when transitioning from metals to polymers.
Implement strict surface finish requirements when pairing plastics with metals.
Avoid identical stainless steel alloys in a single mesh to prevent cold welding.
Advise your engineers and procurement teams to share specific operating parameters with their manufacturing partners. Provide exact numbers for continuous torque, peak RPM, ambient temperature, and lubrication state. This transparency allows your manufacturer to validate load calculations accurately and secure precise tooling quotes for your production run.
A: Rarely without modification. Plastics have lower torque limits and higher thermal expansion rates. Direct replacements usually fail due to heat build-up or sudden shear. They require module or pitch adjustments. You must also increase backlash tolerances significantly to prevent binding as the polymer heats up and expands.
A: Depending on the manufacturing method, softer steels or specific plastics are often preferred. Processes like broaching or shaping favor highly machinable materials. However, when high power density is required, hardened alloy steels remain necessary. The choice heavily balances the required torque against the available cutting tool clearance.
A: Rapid wear in stainless gears is typically due to galling, not abrasive wear. This adhesive wear is caused by running similar stainless alloys against each other. Without adequate lubrication or a hardness differential between the two components, the metals friction-weld together and tear apart during operation.
