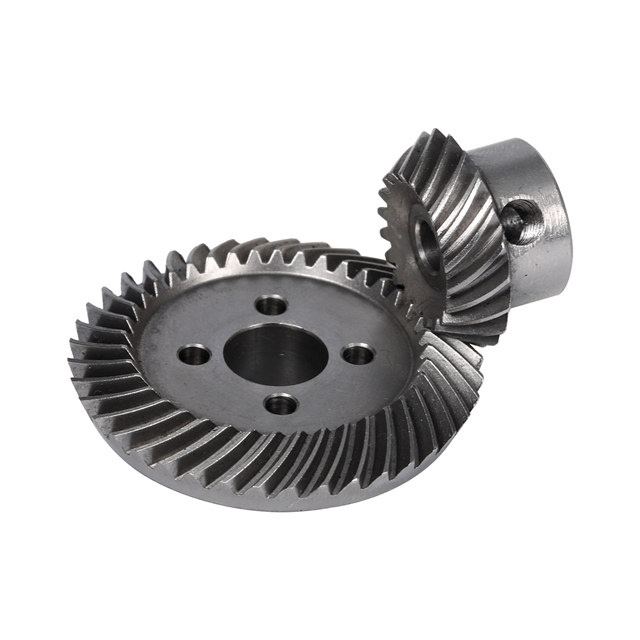

Precision spiral bevel gear sets are matched transmission components consisting of a spiral bevel pinion and a spiral bevel gear designed to transfer rotational power between intersecting shafts, typically at a 90-degree angle. By combining two precisely manufactured spiral gears, the set provides smoother engagement, higher load capacity, and better transmission accuracy compared with individual bevel gears.
As a professional precision spiral bevel gear manufacturer, we provide customized spiral bevel gear sets for industrial machinery, machine tools, automation equipment, robotics, and advanced transmission systems. With CNC machining, precision gear grinding, heat treatment, and strict quality inspection, our gear sets deliver reliable performance under high-speed and heavy-load operating conditions.
The optimized spiral tooth structure enables efficient power transmission with transmission efficiency up to 97%, making these gear sets an ideal solution for applications requiring accuracy, durability, and long-term operational stability.
A precision spiral bevel gear set consists of two matched spiral bevel gears, including a driving gear (pinion) and a driven gear (gear wheel). These two components are manufactured and paired together to achieve accurate tooth engagement, smooth power transmission, and reliable angular motion conversion.
Unlike purchasing individual bevel gears separately, a matched gear set is precisely designed according to the same tooth profile, pressure angle, spiral angle, and gear ratio requirements. This ensures optimal contact patterns, reduced backlash, lower vibration, and improved transmission efficiency.
The driving gear is connected to the input shaft and transfers rotational power to the driven gear. It typically features:
Smaller diameter design
Higher rotational speed
Precision-machined spiral teeth
Optimized tooth strength for continuous operation
The driven gear receives power from the pinion and converts rotational movement according to the required transmission ratio.
Key characteristics include:
Larger diameter for torque multiplication
Matching spiral tooth geometry
Stable load distribution
High wear resistance
The performance of a spiral bevel gear set depends not only on individual gear quality but also on the accuracy of the complete gear pair.
During manufacturing, each matched set is inspected for:
Tooth contact pattern
Backlash adjustment
Center distance compatibility
Rotation smoothness
Noise and vibration performance
This precise pairing ensures reliable operation in high-speed and heavy-duty transmission systems.
A spiral bevel gear set consists of two matching bevel gears with curved teeth designed to transmit motion between intersecting shafts.
The spiral tooth geometry creates gradual tooth contact during rotation, allowing multiple teeth to engage simultaneously. This design reduces impact stress, improves load capacity, and ensures smoother mechanical operation.
The curved spiral tooth profile provides progressive contact between mating gears, reducing vibration and operating noise.
Multiple tooth contacts distribute mechanical loads evenly, improving wear resistance and extending service life.
Optimized tooth geometry minimizes backlash and improves positioning accuracy for precision mechanical systems.
Producing precision spiral bevel gear sets requires advanced equipment, skilled machining processes, and strict quality control.
High-precision CNC machining equipment is used to manufacture gear bodies with accurate dimensions and consistent quality.
Gear grinding improves tooth surface accuracy, reduces friction, and ensures smooth meshing performance.
High-frequency quenching and other heat treatment processes increase tooth hardness while maintaining excellent core toughness.
Coordinate Measuring Machines and professional gear testing equipment verify:
Tooth profile accuracy
Pitch deviation
Runout
Dimensional tolerance
Meshing performance
We select high-quality materials according to application requirements.
Material | Features |
|---|---|
45# Steel | Excellent mechanical strength and cost efficiency |
40Cr Alloy Steel | Higher strength and wear resistance |
20CrMnTi | Excellent fatigue resistance after carburizing |
Stainless Steel Options | Corrosion resistance for special environments |
Material and heat treatment can be customized according to torque requirements, operating environment, and service life expectations.
The optimized spiral tooth structure improves contact performance and achieves transmission efficiency up to 97%, reducing energy loss during operation.
Gradual tooth engagement minimizes impact and vibration, creating smoother and quieter mechanical operation.
Hardened tooth surfaces provide strong wear resistance and reliable performance under continuous industrial workloads.
The 90-degree transmission structure allows efficient power direction changes within limited installation spaces.
Used in lathes, milling machines, drilling equipment, and precision processing machinery requiring accurate power transmission.
Applied in automated production lines and mechanical systems requiring stable and repeatable movement.
Provide precise angular transmission for robotic joints and motion control systems.
Suitable for machinery operating under high torque and continuous-duty conditions.
Support reliable power transmission in large-scale industrial production environments.
Parameter | Capability |
|---|---|
Product Type | Matched Spiral Bevel Gear Set |
Components | Spiral Bevel Pinion + Spiral Bevel Gear |
Transmission Angle | 90° Standard |
Gear Ratio | Customized |
Efficiency | Up to 97% |
Material | 45#, 40Cr, 20CrMnTi, Stainless Steel |
Tooth Profile | Spiral Tooth Design |
Manufacturing Process | CNC Machining + Gear Grinding |
Precision Standard | ISO / AGMA / JIS |
Customization | OEM Gear Set Production Available |
Different mechanical systems require different gear structures and performance characteristics.
We provide customized spiral bevel gear solutions based on customer drawings, samples, or technical requirements.
Customization options include:
Gear ratio adjustment
Tooth number modification
Customized module
Bore and keyway design
External dimensions
Material selection
Surface treatment
Precision requirements
Our engineering team works with customers to optimize gear design for torque, speed, installation space, and operating conditions.
For accurate quotation, please provide:
Gear type
Tooth number
Gear ratio
Module
Pressure angle
Outer diameter
Bore size
Face width
Mounting requirements
Load requirements
Rotation speed
Working environment
Service life expectations
Every precision spiral bevel gear set undergoes strict inspection before shipment.
Quality control includes:
Material inspection
Dimensional verification
Tooth accuracy testing
Hardness testing
CMM measurement
Products are packaged with:
Anti-rust protection
Protective wrapping
Anti-collision packaging
Export wooden cases
We support prototype development, small-batch production, and large-volume OEM manufacturing.
A spiral bevel gear set consists of two bevel gears with curved teeth designed to transmit power between intersecting shafts smoothly and efficiently.
They provide higher efficiency, lower noise, smoother operation, and better load capacity compared with straight bevel gears.
Yes. We provide OEM custom spiral bevel gear manufacturing according to drawings, samples, and technical specifications.
Common materials include 45# steel, 40Cr, 20CrMnTi, and customized alloy materials.
They are widely used in machine tools, robotics, automation equipment, industrial machinery, and transmission systems.
